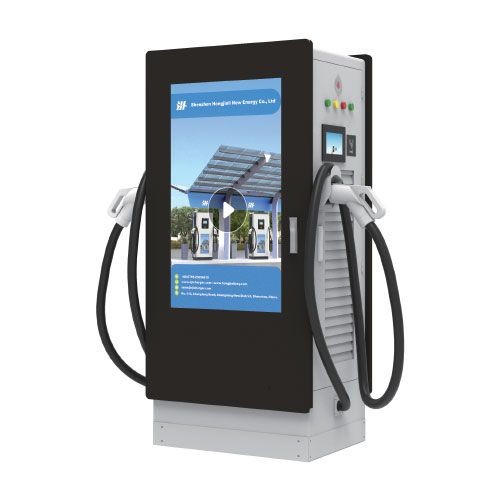

| EV Charger Type | DC |
| Charger Capacity | 30-160KW |
| Mounting | Wall-Mounted/Column Type |
| AC Supply System | Single-Phase, 5 Wire AC system |
| Nominal Input Voltage | AC380V±15% |
| InputFrequency | 45-65Hz |
| Ambient Temperature Range | -25 to 55°C |
| Ambient Humidity | 5 to 95% |
| Storage Temperature | -40 to 70°C |
| IP Ratings | IP 54 |
| Cooling | Air-cooled |
| Number of Outputs | 2 |
| Type of Each Output | DC200-1000V |
| Display & Screen Size | 7 Inches Touch Screen with Shell |
| Advertisement screen | 43 Inches Screen |
| User Authentication | QR Code/Password(Optional) |
| Metering Infomation | Grid responsive metering as per units’ consumption of each vehicle |
| Communication between EVSE and Central Server | OCPP 1.6J Protocol (Optional) |
| Interface between Charger and CMS | Ethernet/3G/4G/WIFI (Optional) |
| Executive Standard | IEC 62196 2017, IEC 61851 2017, SAE J1772, GB/T 20234 |
