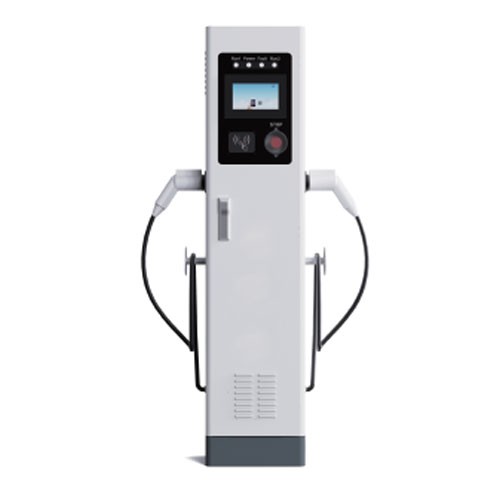

Convenient installation: Ground mounted; High efficiency, reliable and stable performance; Friendly interaction interface, 7’’ color screen(Optional); Support OCPP1.6J/Ethernet/3G/4G/WIFI/Bluetooth telecommunication(optional); Support Swipe card/ Scan QR code/input password to charge (optional); Overload integrated Protection; Support online data upgrade;
| EV Charger Type | AC |
| Charger Capacity | 22-44KW |
| Mounting | Wall-Mounted/Column Typ |
| AC Supply System | Single-Phase, 3 Wire AC system |
| Nominal Input Voltage | AC240V±15%/AC380V±15% |
| InputFrequency | 50/60±3Hz |
| Ambient Temperature Range | -25 to 55°C |
| Ambient Humidity | 5 to 95% |
| Storage Temperature | -40 to 70°C |
| IP Ratings | IP 55 |
| Cooling | Natural Cooling |
| Number of Outputs | 1 |
| Type of Each Output | AC240V±15%/AC380V±15% |
| Single Output Max. Current | 32/64/100 Amp |
| Display & Screen Size | 7 Inches Screen |
| User Authentication | QR Code/RFID Card /Password Login |
| Metering Information | Consumption Units |
| Communication between EVSE and Central Server | OCPP 1.6J Protocol (Optional) |
| Interface between Charger and CMS | Ethernet |
| Executive Standard | IEC 62196 2017, IEC 61851 2017, SAE J1772, GB/T 20234. |
