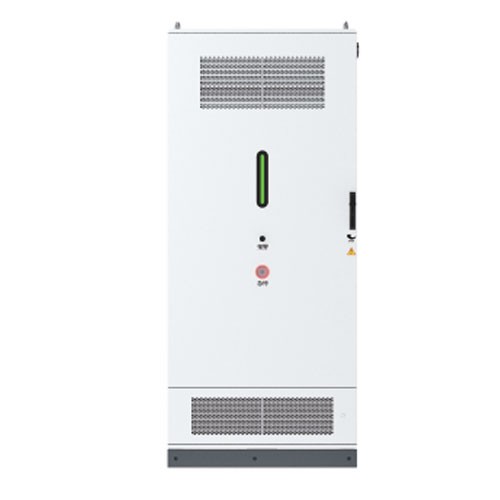

Application : Combined photovoltaic, energy storage, and charging stations; Highlights : Powers homes or businesses for 8-10 hours, scalable for larger needs; Cuts electricity costs by 30-50% with peak shaving & solar optimization; Seamless grid/off-grid switching for uninterrupted power during outages; LFP battery with 6,000+ cycles, fire-resistant & real-time monitoring; Reduces CO2 emissions by ~200 tons/year, ideal for solar/wind pairing;
| Capacity | 215kWh |
| Charge power | 100kW |
| Discharge power | 100kW |
| Grid voltage | 380Vac±15% |
| Input Methods | 3-phase,4-wire |
| Grid frequencies | 45～65Hz |
| Ambient Temperature Range | -25 to 55°C |
| DC Voltage Range | 500~900Vdc |
| Discharge depth | ≤95% |
| Charge/discharge ratio | ＜0.5C |
| Cycle times | ＞6000 |
| Battery | 3.2V/280Ah |
| Pack voltage | 153.6V |
| Total current hamonic | ＜3% |
| Power factor | ≤99% |
| Protection level | IP54 |
| External communications | Ethernet |
| Cooling method | Liquid-cooled |
| Temperature range | -20~55℃ |
| Anti-reverse flow meter | Optional |
| Fire extinguishers | Aerosol |
